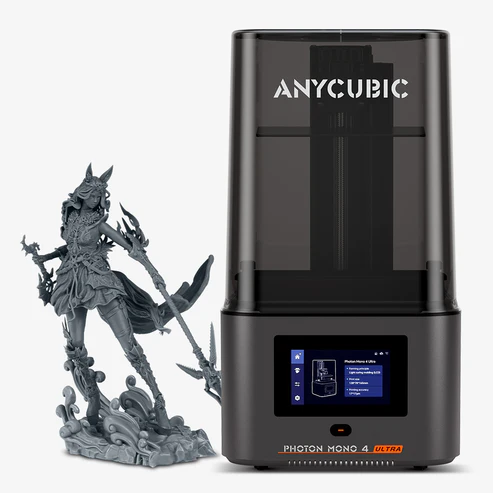

Anycubic Photon Mono 4 Ultra LCD Resin 3D Printer

Description

The Photon Mono 4 Ultra is a high-precision desktop resin 3D printer developed by Anycubic for makers, engineers, designers, and professional hobby users who need ultra-fine detail and stable performance.

It features a 10K monochrome LCD screen combined with a COB light source and Fresnel lens system to improve light uniformity and reduce dimensional errors. The printer also includes intelligent monitoring functions such as resin level detection, failed-print alerts, and system self-inspection, helping reduce material waste and printing failures.

With its compact size, fast printing speed, and very high XY resolution, the Photon Mono 4 Ultra is ideal for miniatures, dental models, jewelry prototypes, and detailed engineering parts.

Specifications

Printing System

Technology: LCD photopolymer resin printing (MSLA)
LCD Screen: 7-inch 10K monochrome display
Screen Resolution: about 9024 × 5120 pixels
XY Resolution: approx. 17 × 17 microns for very fine detail

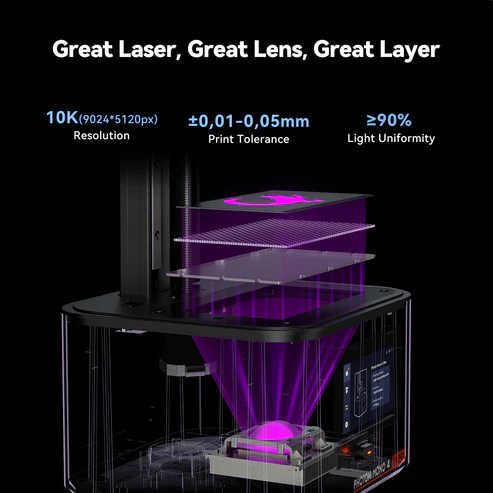

Light Source: COB LED with Fresnel lens and uniformity algorithm (≥90% light uniformity)

Build Volume

Maximum Print Size: approx. 153.4 × 87 × 165 mm
Suitable for small precision parts, figurines, dental models, and jewelry masters.

Printing Performance

Layer Thickness: approx. 0.02 – 0.15 mm
Maximum Print Speed:
• Standard resin: up to about 80 mm/h
• High-speed resin: up to about 120 mm/h
Improved release algorithm and ACF film help increase speed and print reliability.

Smart Features

Automatic resin level monitoring
Failed-print detection system
Residual resin inspection
Self-check and lifespan management system
User interface on a 4.3-inch touch screen for easier operation.

Connectivity & Control

File Transfer: USB, Wi-Fi, and LAN support
Slicing Software: Photon Workshop and compatible third-party slicers
App support available for monitoring and workflow control.

Physical Details

Machine Size: approx. 231 × 236 × 430 mm
Weight: around 5 kg
Power Consumption: roughly 66 W
Leveling Method: 4-point manual leveling system.
