Description
Anycubic Standard Resin HD Grey (1KG) – 3D Printer UV Resin (405 nm)
📌 Product Overview
This is a high-precision UV-curable resin from Anycubic Standard Resin HD Grey designed for LCD/DLP/SLA 3D printers that use 365–405 nm ultraviolet light. It’s formulated to deliver smooth, detailed prints with good dimensional accuracy, especially suitable for miniatures, prototypes, display parts, artistic models, and functional pieces. Standard HD Grey resin is neutral in colour, providing excellent visibility of surface details even before painting or finishing.
📊 Technical Specifications
| Attribute | Specification / Value |
|---|---|
| Resin Type | UV-curable photopolymer |
| Colour | High-Density Grey (HD Grey) |
| Weight/Volume | 1 kg |
| Compatible Printers | LCD / DLP / SLA 3D printers with 365–405 nm UV light |
| Density | Approx. 1.13 g/cm³ |
| Viscosity | Low (~200–230 cP) for smooth flow and consistent printing |
| Hardness | ~84–86 HS |
| Tensile Strength | ~40–50 MPa |
| Flexural Strength | ~50–60 MPa |
| Flexural Modulus | ~1400–1600 MPa |
| Elongation at Break | ~12–16% |
| Molding Shrinkage | ~4.5–5.5% |
| Shelf Life | Up to 18 months when stored sealed in a cool, dark place |
🔍 Key Features
🎨 High Detail & Precision
HD Grey resin produces very fine surface details and sharp features, making it excellent for models, miniatures, detailed prototypes, and artistic prints. The neutral grey colour also helps with post-processing inspection and painting.
🧪 Fast Curing & Stable Printing
Optimised for rapid UV curing, this resin enhances printing efficiency without compromising print quality. It also has stable flow characteristics thanks to its low viscosity.
🏗️ Good Mechanical Performance
With solid hardness and decent flexural strength, prints are strong yet detailed — perfect for display pieces and functional prototypes that don’t need heavy mechanical loads.
🛠️ Wide Compatibility
Works with most LCD/DLP printers that cure at 365-405 nm (e.g., Anycubic Photon series, Elegoo Mars/Saturn, Creality Halot, Phrozen Sonic, etc.).
🖨️ How It Works (Workflow)
-
Preparation:
– Shake the resin bottle thoroughly to mix pigments.
– Clean build plate and resin tank before use. -
Printing:
– Fill resin vat and set print exposure parameters.
– Start the print — UV light cures layer by layer. -
Post-Processing:
– Remove the print and rinse with ≥95 % isopropyl alcohol or ethanol.
– Dry and post-cure under UV light (curing station/sunlight).
🧯 Safety & Handling
-
Wear nitrile gloves and eye protection when handling uncured resin.
-
Use in a well-ventilated area.
-
Store resin sealed, away from light and heat.
📌 Typical Use Cases

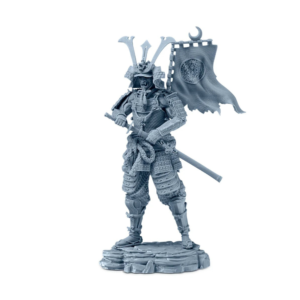

✔ Highly detailed miniatures and figurines
✔ Prototypes and mechanical parts
✔ Artistic models and display pieces
✔ Concept models for visualisation
✔ Parts that will be painted or finished
