ELEGOO Standard Grey Resin

Description

ELEGOO Standard Grey Resin is a high-precision 405 nm UV-curing photopolymer formulated for LCD/DLP/MSLA resin 3D printers. It produces detailed, smooth, and dimensionally accurate prints with a neutral grey finish that’s ideal for prototypes, miniatures, functional parts, and general-purpose resin printing. Its balanced properties deliver consistent print quality and reliability.

Specifications

General

• Resin Type: Standard UV-curable photopolymer

• Colour: Grey

• Typical Bottle Size: 1 kg

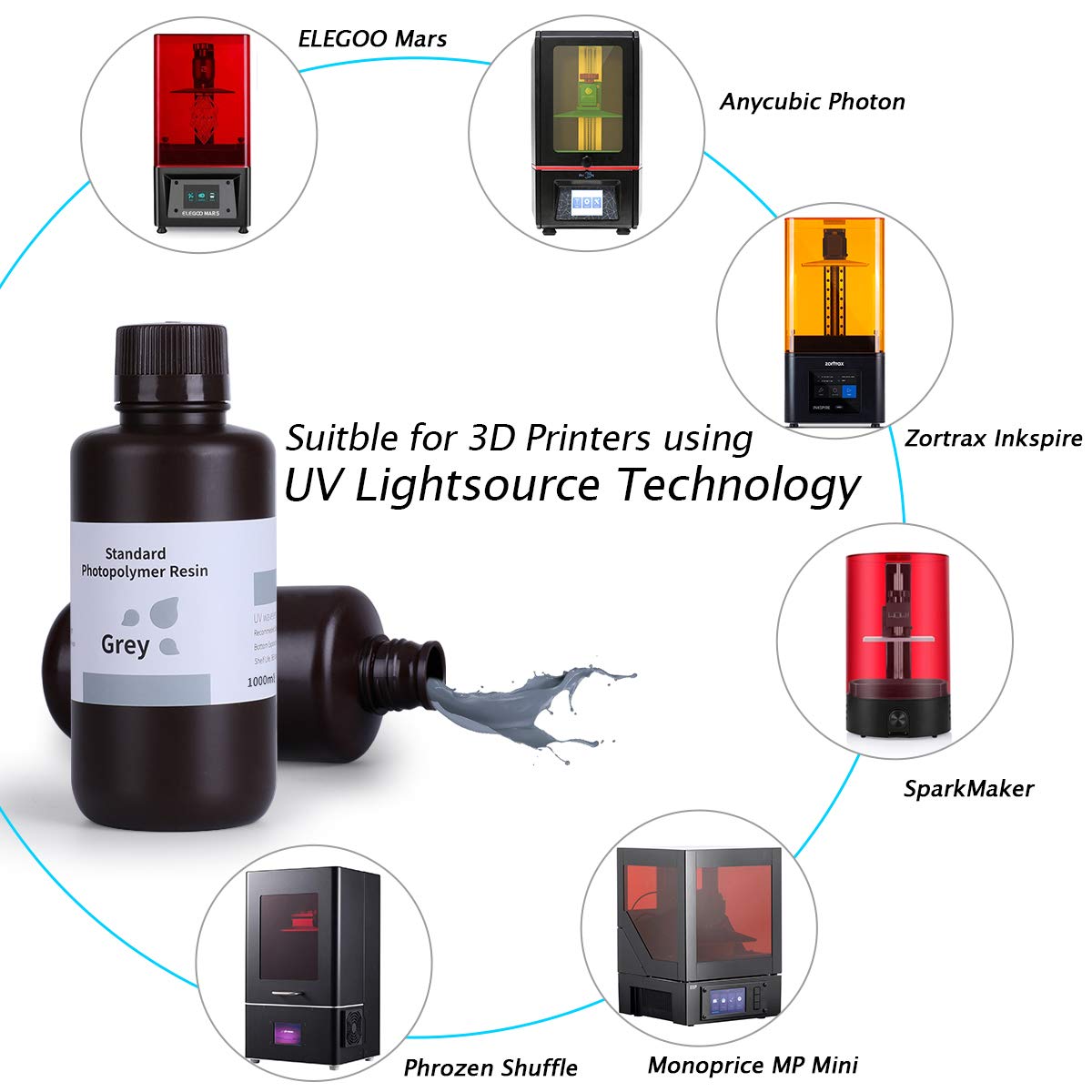

• Printer Compatibility: LCD, DLP, MSLA 3D printers using 405 nm UV light

Physical & Mechanical Properties

• Viscosity (at ~25 °C): ~150–200 mPa·s

• Shrinkage: ~7% (low shrinkage for better dimensional accuracy)

• Hardness (cured): ~84 Shore D

• Liquid Density: Approx. ~1.10 g/cm³

• Solid Density: Approx. ~1.19 g/cm³

• Tensile Strength: ~36–53 MPa

• Flexural Strength: ~59–70 MPa

• Elongation at Break: ~14%

• Shelf Life: Typically around 2 years (sealed)

Printing & Performance

• Curing Wavelength: 405 nm UV

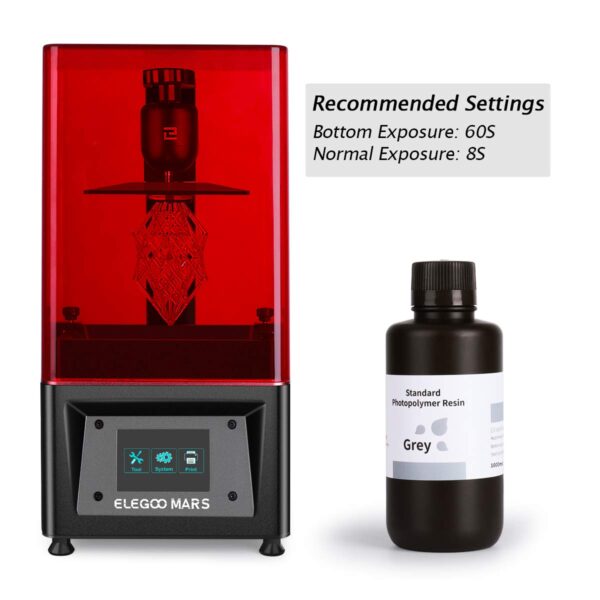

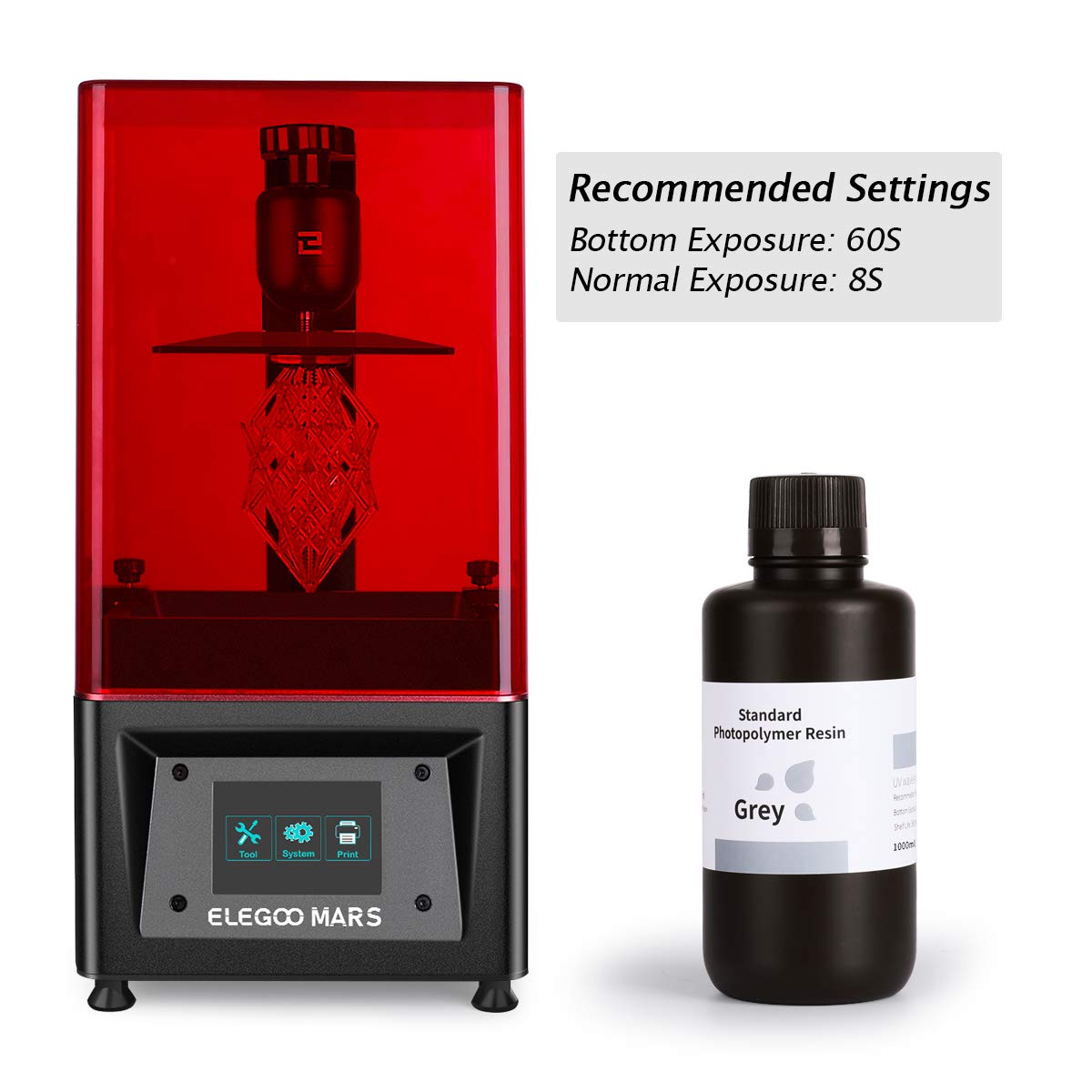

• Recommended Exposure (Typical): ~6–10 seconds per layer (varies by printer model and settings)

• Surface Finish: Smooth with visible fine detail

• Stability: Good fluidity with consistent layer formation

• Odor Level: Mild/low

Applications

• Prototypes and functional parts

• Miniatures and figurines

• Character models

• Display models and concept validation

• General hobby and detailed printing
