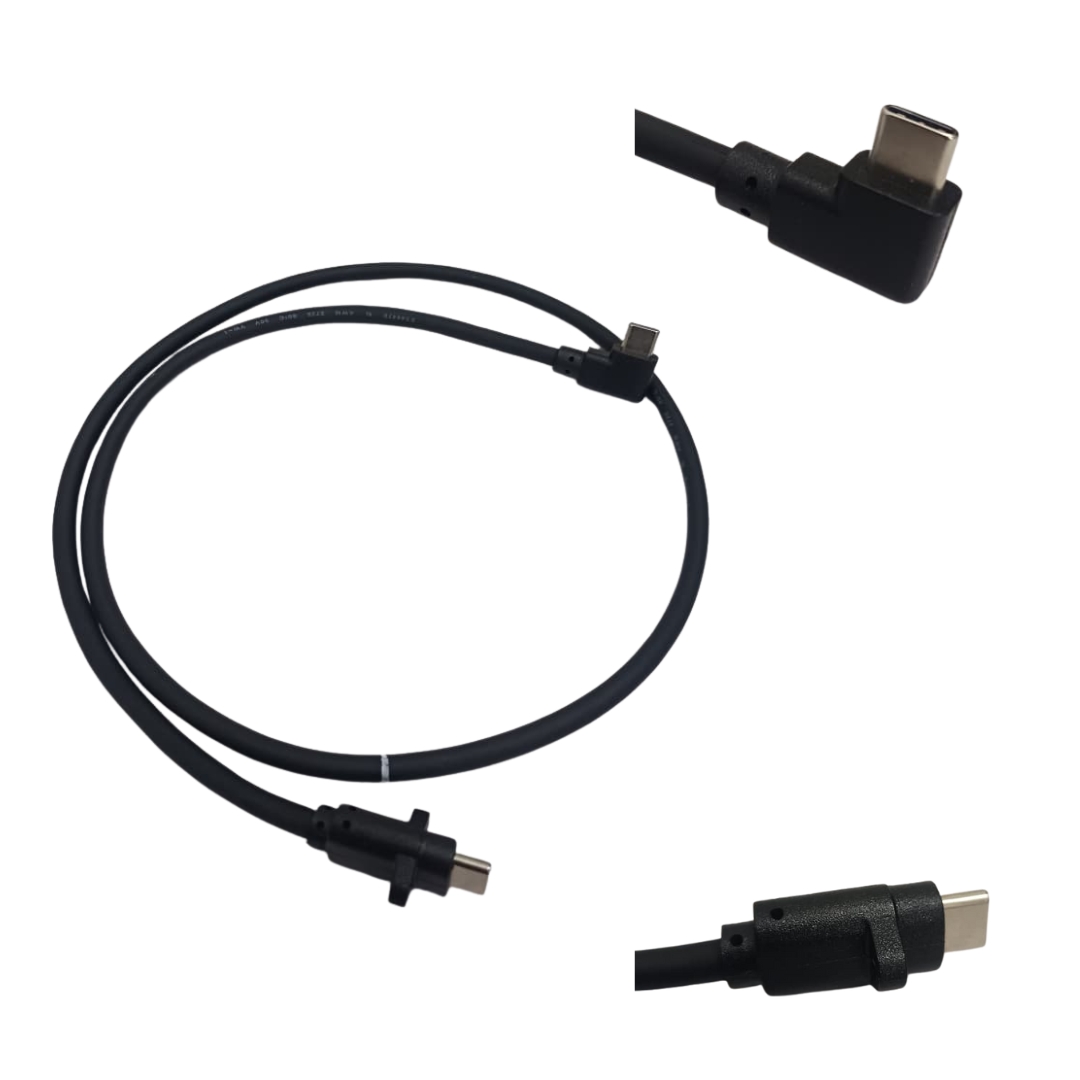

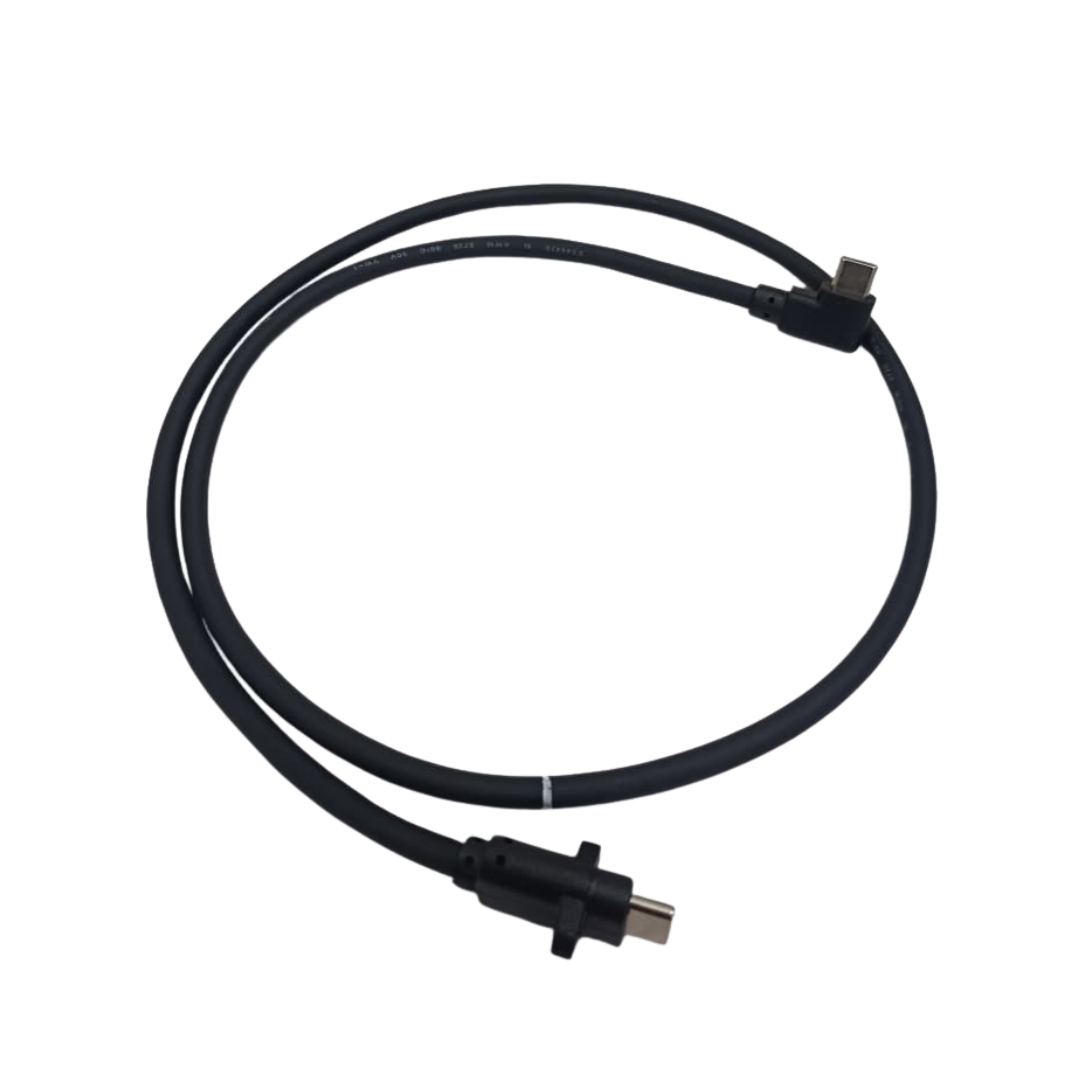

Flashforge Printhead Bus for AD5X 3D Printer

Description

Flashforge Printhead Bus for AD5X 3D Printer – Full Description

The Flashforge Printhead Bus for AD5X 3D Printer Spare Part is a critical internal communication component that connects the printhead module to the printer’s main control board. It ensures stable electrical signal transfer between the extruder assembly and motherboard, allowing the printer to properly control heating, temperature monitoring, cooling fans, and extrusion movement.

Designed specifically for the AD5X series, this printhead bus is manufactured to match original factory specifications. It restores full communication between the hotend system and printer electronics when the original bus becomes damaged, loose, or electrically unstable.

Because the printhead constantly moves during printing, this component is built with flexible wiring and reinforced connectors to withstand vibration, heat exposure, and repeated motion cycles without signal interruption.

Replacing a faulty printhead bus can resolve many common printer issues such as nozzle temperature errors, heating failure, extruder communication loss, or printhead disconnection warnings.

This is a direct replacement spare part and installs without modification, soldering, or firmware changes.

Key Features

• Original-style communication bus for AD5X printhead system

• Enables data transfer between printhead and motherboard

• Supports heater, thermistor, fan, and extruder signals

• Flexible wiring designed for continuous motion use

• Reinforced connectors for stable electrical contact

• Plug-and-play replacement with no modification required

• Ideal for printer repair, maintenance, or restoration

Detailed Specifications

• Product Name: Printhead Bus Cable / Communication Bus

• Compatible Printer: AD5X 3D Printer

• Function: Transfers control signals between printhead and mainboard

• Signal Support:

  • Heater power control

  • Temperature sensor feedback

  • Cooling fan operation

  • Extruder motor communication

• Cable Type: Multi-wire flexible harness / bus connector

• Connector Style: Factory-fit plug connectors

• Material: Heat-resistant insulated wiring with reinforced terminals

• Installation: Direct replacement (plug-and-play)

• Use Case: Repair, maintenance, spare part replacement

• Condition: New spare component

When You Should Replace It

Replace the printhead bus if you experience:

• Nozzle not heating

• Temperature fluctuation errors

• Printhead disconnected warning

• Fans not responding

• Extruder motor not working

• Random print stoppages due to communication faults
