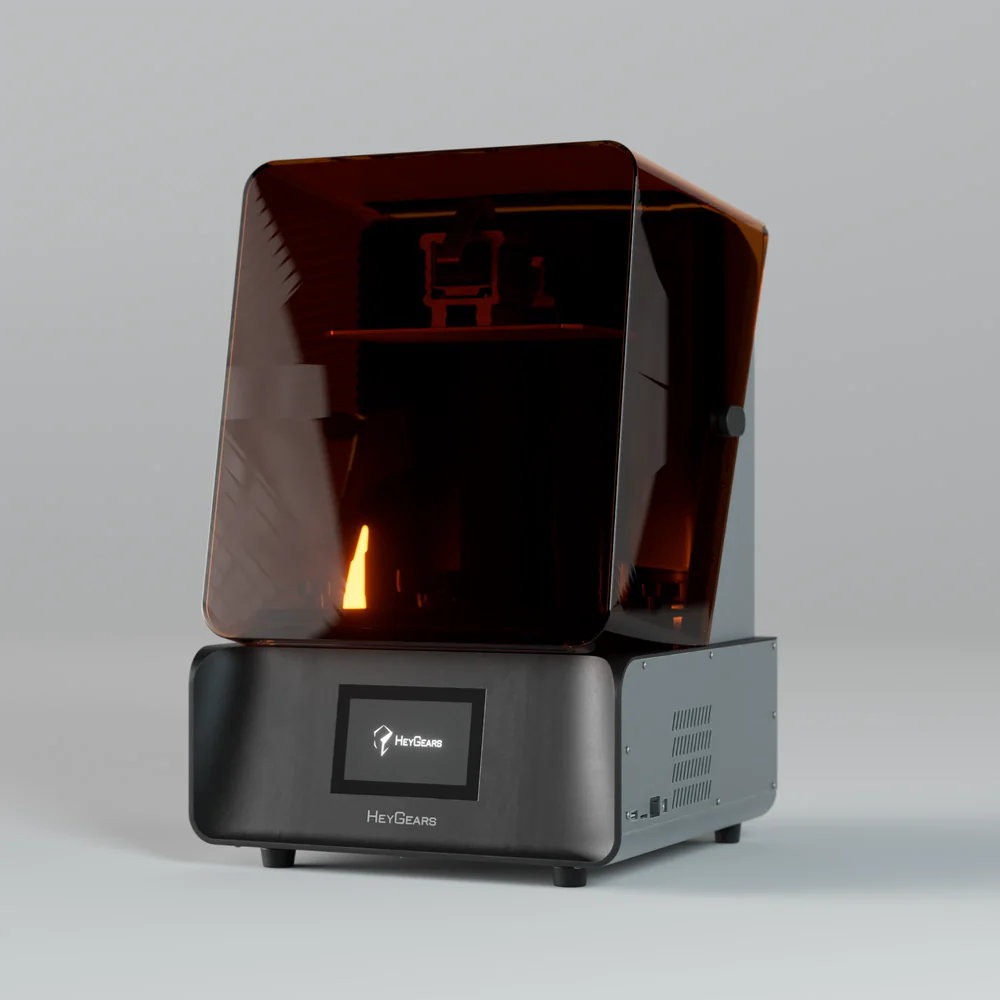

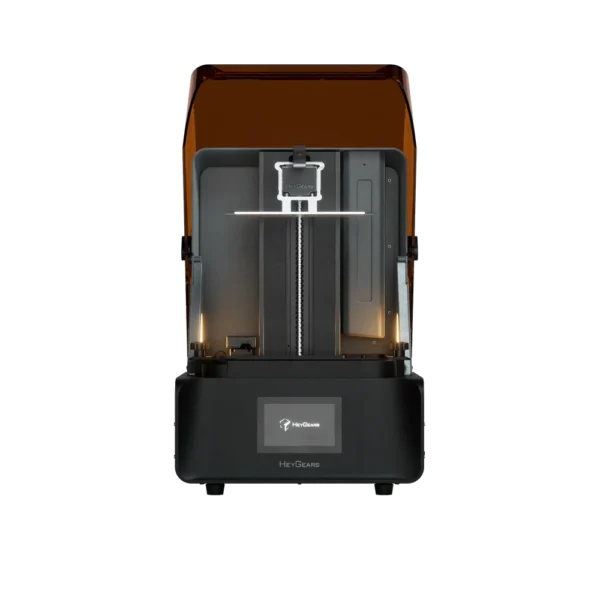

HeyGears UltraCraft Reflex RS 3D Printer
Description
The UltraCraft Reflex RS is a professional-grade LCD resin 3D printer designed for high-precision production, rapid prototyping, and industrial workflows. It focuses on automation, accuracy, and repeatability so that users can achieve consistent results with minimal manual calibration.
The printer integrates intelligent motion control, adaptive Z-axis compensation, and automated pre-processing features that simplify the printing process and improve reliability. With its precision screen calibration, automatic resin management system, and monitoring sensors, the Reflex RS is built for industries such as dental modeling, jewelry manufacturing, engineering prototypes, and small-batch production where detail and dimensional accuracy are critical.
Specifications
Printing Technology
Printing Method: LCD (MSLA) resin printing
Light Source: 405 nm UV light engine
LCD Screen: 10.3-inch 8K monochrome display
XY Resolution: about 29.7 microns
Layer Thickness: approx. 30–100 microns
Build Volume
Maximum Build Size: about 222 × 122 × 228 mm
Suitable for precision parts, dental models, jewelry masters, and production batches.
Mechanical Accuracy & Motion
C5-grade Z-axis module with positioning accuracy within a few microns
Dimensional accuracy roughly ±15 microns
Adaptive Z-axis compensation system for different resin types and geometries
Dynamic motion algorithm to optimize speed and print stability
Printing Speed
Typical curing speed: around 4.5 seconds per layer
Optimized for rapid batch printing and professional production use.
Automation & Smart Features
Automatic floating screen leveling system
One-click slicing with automatic model repair
Intelligent auto-support generation
Force sensors to detect resin residue or print failures
Automatic resin refill before and during printing
Optional heated resin tank to maintain optimal resin temperature
Connectivity & System
Interfaces: USB, Wi-Fi, and LAN connectivity
Rated Power: approx. 350 W
Voltage: 100–240 V AC, 50/60 Hz
Printer Size: about 380 × 360 × 584 mm
Weight: around 20 kg
