Description
🖨️ Product Overview

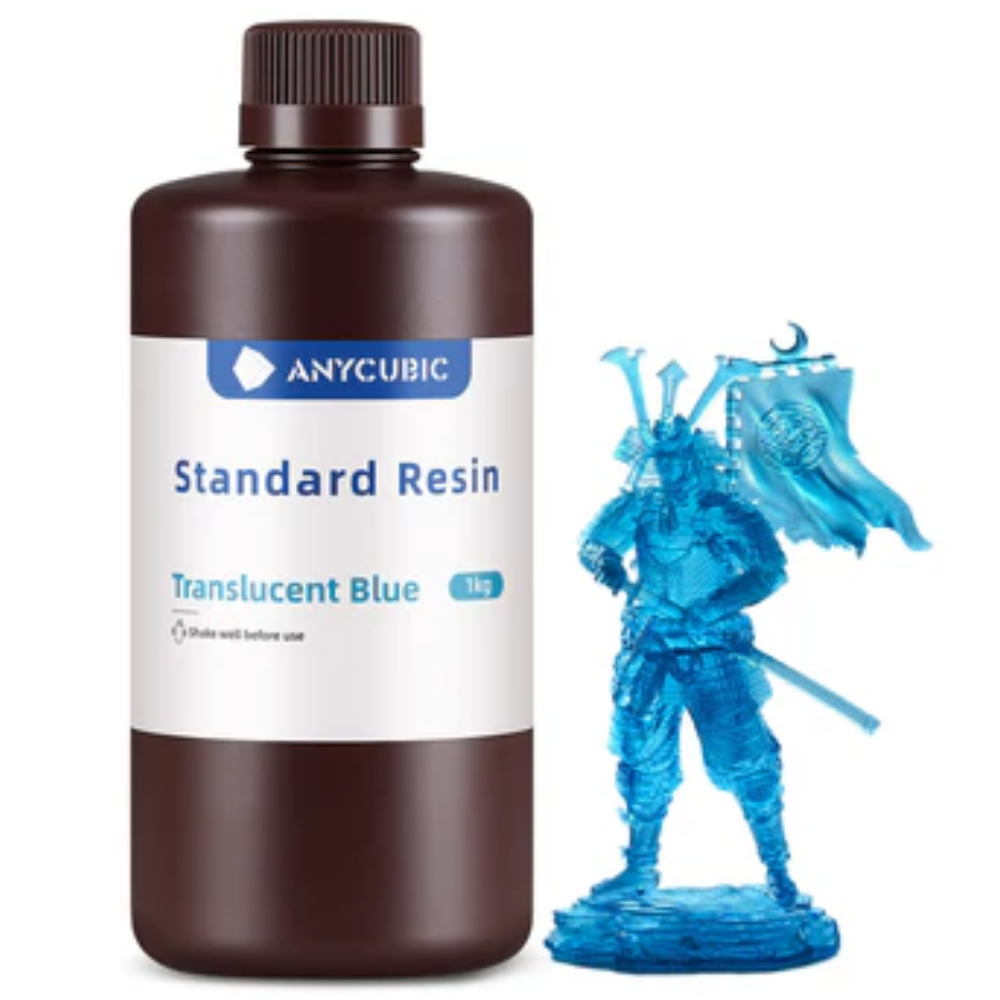

This is a UV-curable photopolymer resin designed for use in LCD and DLP 3D printers (365 – 405 nm wavelength). It produces translucent blue prints with excellent visual appeal — ideal for display models, miniatures, art pieces, functional prototypes, and creative projects without the need for painting afterwards.
📌 Key Features
-

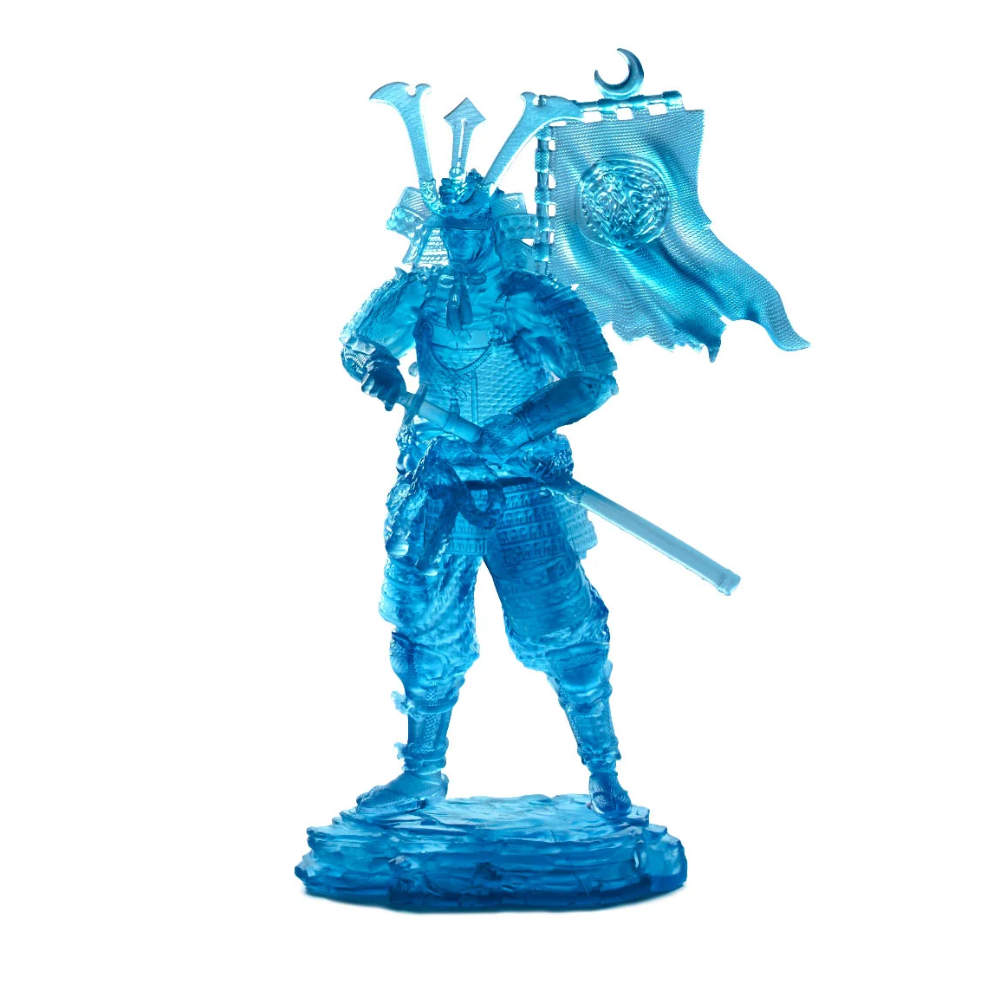

Translucent Blue Finish: Produces semi-transparent blue parts that look great straight off the printer.
-
High Precision & Detail: Excellent for fine details and smooth surfaces.
-
Fast UV Curing: Prints cure quickly under 405 nm UV light, improving productivity.
-
Low Viscosity: Easy flow in the resin vat ensures smooth printing and easy cleaning.
-
Strong Adhesion: Sticks well to the build plate yet releases easily after printing.
-
Stable Performance: Works reliably under varied environmental conditions.
-
Wide Compatibility: Works with almost all 3D resin printers that use 365–405 nm UV curing (e.g., Anycubic Photon series, Elegoo Mars/Saturn, Creality Halot, Phrozen Sonic series).
🧪 Technical Specifications
| Attribute | Value |
|---|---|
| Material Type | UV-curable photopolymer resin |
| Colour | Translucent Blue |
| Weight / Volume | 1 kg resin |
| Compatible UV Wavelength | 365–405 nm |
| Density | ~1.13 g/cm³ |
| Viscosity | ~200 – 230 cP (low viscosity) |
| Hardness | ~84–86 HS |
| Tensile Strength | ~40–50 MPa |
| Elongation at Break | ~12–16% |
| Flexural Strength | ~50–60 MPa |
| Flexural Modulus | ~1400–1600 MPa |
| Shrinkage After Cure | ~4.5–5.5% |
| Shelf Life | ~18 months (sealed, dark, cool storage) |
🛠️ How It Works (Workflow)
-
Preparation:
-
Shake bottle well to mix pigments and chemicals evenly.
-
Ensure build plate and resin vat are clean.
-
-
Printing:
-
Pour resin into vat.
-
Choose exposure settings based on your printer and layer thickness.
-
Press Print — the UV light cures each layer sequentially.
-
-
Post-Processing:
-
Remove finished print using scraper.
-
Rinse in 95%+ isopropyl alcohol or ethanol to remove uncured resin.
-
Dry thoroughly before final UV curing (sunlight or curing station).
-
-
Final Curing:
-
Cure for several minutes under UV light to reach full strength.
-
🧯 Safety & Handling
-
Always wear nitrile gloves and eye protection.
-
Ensure good ventilation in the printing area.
-
Store resin sealed, away from light and heat for best shelf life.
-
Wash hands and tools after handling.
📊 Applications
✔ Miniatures and figurines
✔ Visual prototypes and display parts
✔ Decorative art pieces
✔ Concept models
✔ Transparent and coloured effects without painting
✔ Prototype functional parts with aesthetic finish
