xTool F2 Dual Laser Engraver – Portable 15W + IR Metal Engraving Machine

Description

xTool F2 Dual Laser Engraver – Portable 15W + IR Metal Engraving Machine

📌 Product Overview

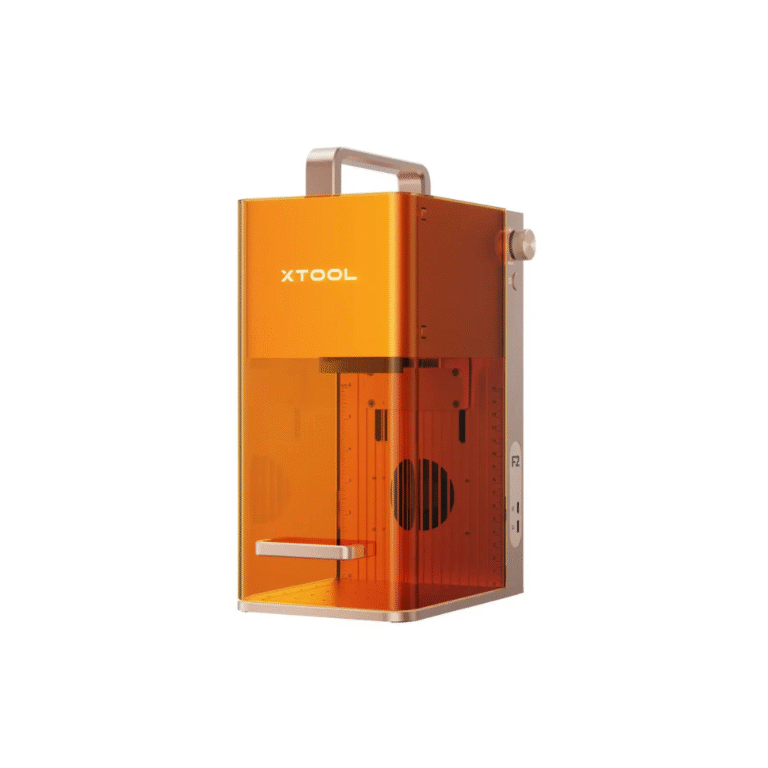

The xTool F2 Dual Laser Engraver is a compact, portable dual-laser engraving system combining a powerful 15 W diode laser and a 5 W infrared (IR) laser for versatile marking and engraving across a wide range of materials. It’s designed for creators, small businesses, customization shops, hobbyists, and makers who need professional-level engraving with high precision and flexibility.

Built-in smart features such as a 50 MP camera, auto-focus, and visual workspace preview make setup and alignment easy — even for beginners — and help reduce material waste. The dual-laser combination allows both deep engraving on metals and detailed work on other surfaces like wood, leather, acrylic, paper, and more.

📊 Technical Specifications

• Laser Sources:

  • 15 W Diode Laser (≈ 455 nm) — for engraving and cutting non-metallic materials (wood, leather, acrylic, paper, etc.)

  • 5 W IR Laser (1064 nm) — for engraving metals and coated materials with crisp detail

• Working Area: 115 × 115 mm (4.5″ × 4.5″)

• Extended Work Area (with Slide Extension): 115 × 400 mm (≈ 4.5″ × 15.7″)

• Max Engraving Speed: Up to 6000 mm/s

• Max Object Height: Up to 120 mm

• Laser Spot Size:

  • Diode Laser spot ~0.08 × 0.06 mm

  • IR Laser spot ~0.03 × 0.03 mm

• Positioning: Built-in 50 MP smart camera with auto-focus and WYSIWYG preview

• Movement Accuracy: ~0.00199 mm

• Repeat Positioning Accuracy: ~0.00248 mm

• Connectivity: Wi-Fi, USB, IP connection

• Supported OS: Windows, macOS

• File Formats: SVG, DXF, JPG, JPEG, PNG, BMP

• Input Power: 24 V, 6 A, 150 W

• Dimensions: ~175 × 237 × 334 mm

• Weight: ~4.8 kg

🔧 Key Features & Capabilities

• Dual-Laser System: Combines high-power diode for versatile engraving/cutting and IR laser for metal marking.

• Smart Camera Preview: 50MP camera lets you visualise and align designs directly on the workpiece before engraving.

• Auto Focus & Framing: Auto-focus and framing modes for precise setup and minimal trial-and-error.

• Portable & Compact: Pre-assembled, enclosed body with protective cover — easy to carry and use in studios, workshops, or event booths.

• Flexible Material Support: Good for wood, leather, acrylic, plastic, paper, coated metals, stainless steel marking, gold, silver, brass, etc.

• Batch Workflow Ready: Can work with slide extension for larger or multiple pieces in sequence.

• Safety Features: Enclosed chamber and eye-protection cover help ensure safer laser operation.

🧰 Ideal Applications

✔ Professional engraving on metals (marking/etching)
✔ Wood, acrylic, leather cutting & engraving
✔ Custom branding and gift personalization
✔ Jewelry marking and fine detail work
✔ Small-batch production and on-site demonstrations
